Innovative LED Product
Transparent LED screen
Transparent LED Screen P20
Display module : P20
Size/module(mm) : 2000H x 340W
Pixel/module : 96 x 16
Pitch : 20.83mm
Max Power : 438W
Average Power : 210W
Light transmittance : >90%
Brightness : 1600cd/m²
LED type : RGB1616, 3 in 1
Ambient temperature : -10°C ~ 50°C
Display module : P20
Size/module(mm) : 2000H x 340W
Pixel/module : 96 x 16
Pitch : 20.83mm
Max Power : 438W
Average Power : 210W
Light transmittance : >90%
Brightness : 1600cd/m²
LED type : RGB1616, 3 in 1
Ambient temperature : -10°C ~ 50°C
Product Description
Transparent LED Screen: P20
Speicification
| Display module | P20 |
| Size/module(mm) | 2000H x 340W |
| Pixel/module | 96 x 16 |
| Pitch | 20.83mm |
| Max Power | 438W |
| Average Power | 210W |
| Light transmittance | >90% |
| Brightness | 1600cd/m² |
| LED type | RGB1616, 3 in 1 |
| Ambient temperature | -10°C ~ 50°C |

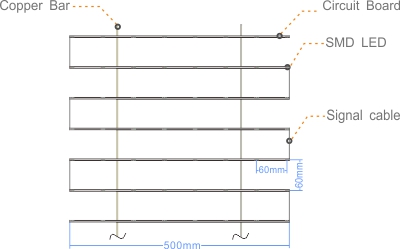

Modular
Independent hanging Installation
Hung up the screen with Top Bar and Bottom Bar.
Signal board, power supply and SD card control board are installed inside the Bottom Bar. The screen is hung from the ceiling independently by the Top Bar.
- Install the Hooks to the ceiling.
- Hang up the Top Bar and Bottom Bar to the hooks.
- Assemble the LED panel to the Top Bar.
- Connect cables.
Laying Installation
Signal board, power supply and SD card control board are installed inside the Bottom Bar. The screen is supported by the Frame.
- Install the Frame.
- Hang up the Top Bar and Bottom Bar to the frame.
- Assemble the LED panel to the Top Bar.
- Connect cables.

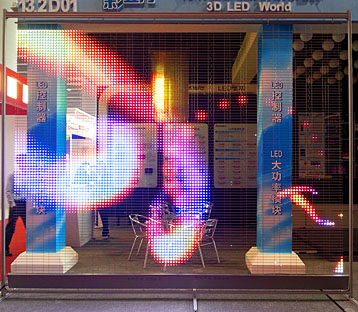

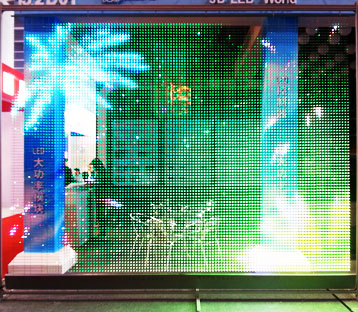

Effect
- More than 30 kinds of 3D animation have been programmed.
- English alphabet input, picture & video record can be processed by the software.
- With the SD card controller, effect can display manually or automatically .
