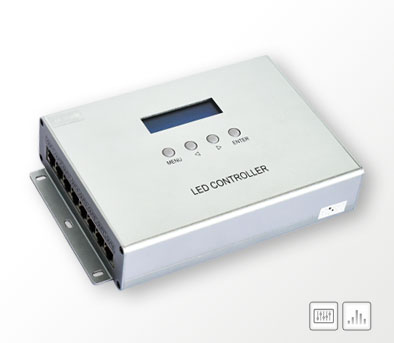

AN-508 · Artnet-DMX Master Controller
Input signal：Artnet
Output signal：DMX512
DMX channel：4096(8×512 channel)
Input port：RJ45×1
Output port：RJ45×8
Max power：5W
Working temperature：-15℃～60℃
Cover material: Aluminum alloy
Working voltage：DC7.5V
Power plug：Power adapter
Weight: 1000g(N.W.850g)
Size：220L×142W×45H mm
Input signal：Artnet
Output signal：DMX512
DMX channel：4096(8×512 channel)
Input port：RJ45×1
Output port：RJ45×8
Max power：5W
Working temperature：-15℃～60℃
Cover material: Aluminum alloy
Working voltage：DC7.5V
Power plug：Power adapter
Weight: 1000g(N.W.850g)
Size：220L×142W×45H mm
Product Description
◆ Feature
· Following standard Artnet protocol
· Adopting high speed 32-bit ARM processor
· Convert the network packet of Artnet protocol to standard DMX512 data
· Support all Artnet compatible DMX software, such as Madrix, FreeStyler etc.

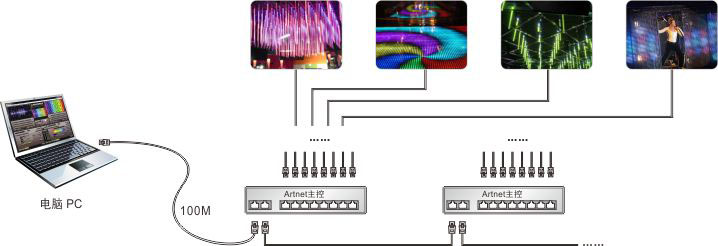

◆ Cascade Connection Diagram

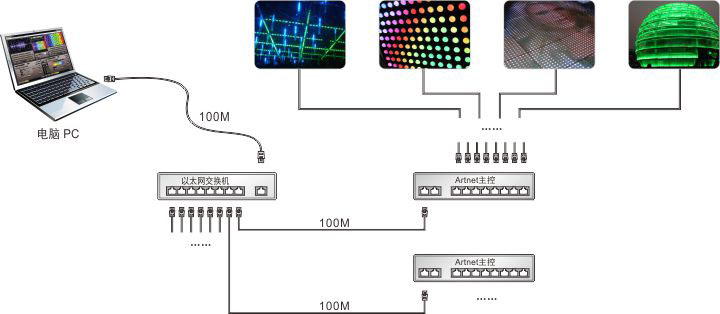

◆ Parallel Connection Diagram
