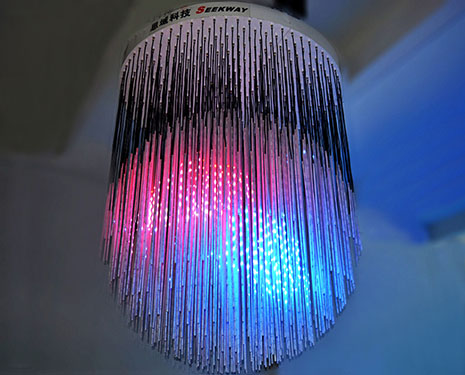

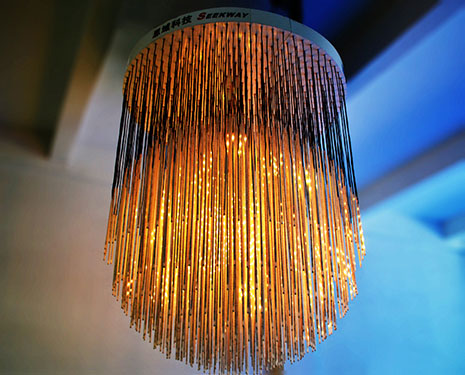

SEEKWAY 3D LED CUBE: C21





Size	Diameter 200cm (Cylinder)
Pixel composing	2 pcs LED/pixel
LED type	SMD5050, 3 in 1
Pitch	6cm (V), 8cm (H)
Pixels qty	9632 (469pcs tubes with different length)
Material of top tray	Iron with the baking varnish disposal
Material of tube cover	Polycarbonate
Control Mode	SD Card control
Installation environment	Indoors Hanging, none-waterproof
Average power	890W
Max power	4KW
N.W	254KG
G.W	362KG
Packing	Plywood case, compact disassembled













• Connect the 2pcs 1/2 control trays together.
• Hang up the control tray and insert the tubes one by one.



• More than 30 kinds of 3D animation have been programmed.
• English alphabet input, picture &  video record can be processed by the software.
• With the SD card controller, effect can display manually or automatically .

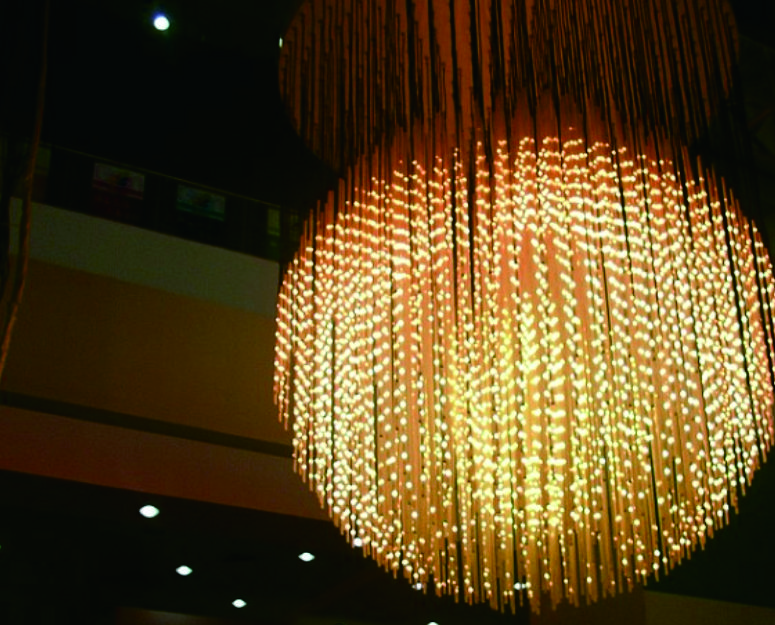

    City Hall in Korea







Related Product

    Located in Rizhao, Shandong, China                           Mriya Hotel, Crimea

   Urban Planning Exhibition Hall                                    Voxel: 66271

   Voxel: 79492                                                             Diameter: 4.2m

   Pitch: 60mm (V), 100mm (H)                                      Pitch: 60mm (V), 90mm (H)
